Pulse Transformer 610J647H01

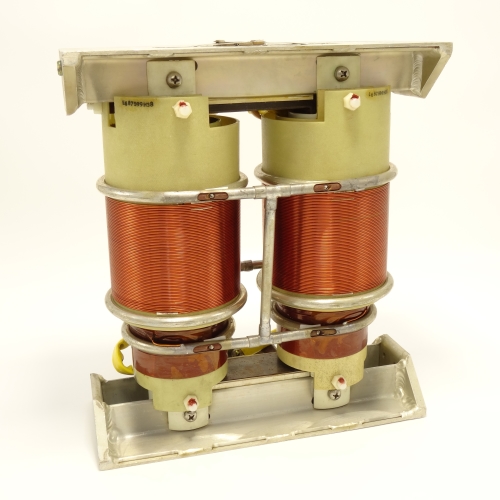

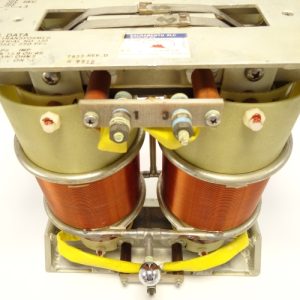

Pulse Transformer 610J647H01 supplied in AR condition with our certificate of conformance.

Part Number: 610J647H01

Alternative Part Number: 1366794, RX00826, RX826, 5950-01-476-6155

NSN: 5950-00-004-5547

Description: Pulse Transformer, TPS Radar

Location: Romsey, U.K.

Export Licence: Required

Serial Number: None

Manufacturer: Northrop Grumman Systems (97942)

NSN Characteristics:

• Overall Length: 7.000 inches maximum
• Center to Center Distance Between Mounting Facilities Parallel to Length: 12.440 inches
• Center to Center Distance Between Mounting Facilities Parallel to Width: 1.000 inches
• Impedance Rating in Ohms: 13.9 nominal single component single primary
• Impedance Rating in Ohms: 1390.0 nominal single component single secondary
• Body Length: 5.250 inches maximum
• Body Width: 12.750 inches
• Body Height: 14.310 inches maximum
• Enclosure Type: OPEN
• Mounting Facility Quantity: 4 single group
• Mounting Method: Threaded hole single group
• Winding Function and Quantity: 1 primary single component and 1 secondary single component
• Thread Quantity per Inch: 20 single group
• Nominal Thread Size: 0.250 inches single group
• Winding Operating Current: 84.0 amperes ac maximum single component single secondary
• Winding Operating Current: 840.0 amperes ac maximum single component single primary
• Thread Series Designator: Unc single group
• Terminal Type and Quantity: 4 threaded stud

Please contact Aviation Spares & Repairs Limited for more information regarding this Pulse Transformer 610J647H01. We are also here to support with any other material requirements you have.
